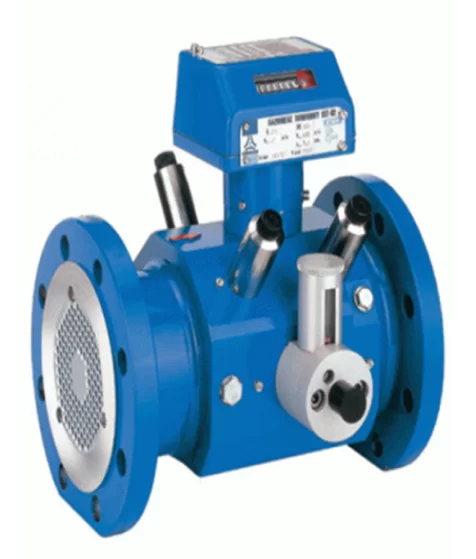

Product view

Turbinmeters

The economical route to high, steady flow measurement.

The MT-T uses gas velocity to spin a bladed rotor, with revolutions proportional to volume. At high sustained flow it delivers accuracy at a lower cost per m³/h than any displacement technology, which is why it dominates transmission and large-industrial measurement. It needs steady flow and clean gas to perform, so straight-run and filtration requirements are part of the specification.

Features

  • •High capacity for the body size and cost
  • •Low permanent pressure loss
  • •Lubrication system for extended bearing life
  • •High-frequency pulse output for fast response
  • •Bi-directional versions available
Request a quoteDatasheets

Key features

  • High capacity for the body size and cost
  • Low permanent pressure loss
  • Lubrication system for extended bearing life
  • High-frequency pulse output for fast response
  • Bi-directional versions available

Applications

  • Transmission and city-gate measurement
  • Power-station fuel-gas metering
  • Large industrial intake

Technical specifications

Confirmed against your duty at order stage — send us the operating conditions and we will verify the selection.

Turbinmeters specifications
ParameterValue
Flow range8 – 25,000 m³/h
Accuracy±1 % (±0.5 % over upper range)
TurndownUp to 1:20
Design pressureUp to 100 bar
SizesDN 50 – DN 400
ConnectionsPN16 – PN100 flanged, ANSI 150 – 600

Technical documents

Datasheets, installation manuals, drawings and conformity declarations.

  • MT-T Turbinmeter — Technical DatasheetDatasheet · PDF · on request
  • MT-T Turbinmeter — Installation & Maintenance ManualManual · PDF · on request
  • MT-T Turbinmeter — Dimensional DrawingDrawing · DWG / PDF · on request
  • MT-T Turbinmeter — Declaration of ConformityCertificate · PDF · on request

Documentation for Turbinmeters is issued on request against the confirmed specification. Request the document pack.

Related products

Rotarymeters

Gas Meters

Rotarymeters

Wide turndown and high accuracy in a body far smaller than the flow suggests.

Quantometers

Gas Meters

Quantometers

Turbine-derived consumption monitoring where fiscal approval is not required.

Volume Correctors

Gas Meters

Volume Correctors

Converts line-condition volume into the standard-condition figure you invoice on.

Enquire about this product

The more detail you give on the duty, the more precise the proposal comes back.

Request a quotation

Tell us the duty and we will come back with a sized proposal for Turbinmeters (MT-T).

Frequently asked questions

What engineers most often ask when specifying this equipment.

Typically a defined number of diameters upstream with a flow conditioner, and a shorter run downstream. Disturbed flow directly biases the reading, so the straight-run requirement is part of the accuracy specification rather than a suggestion.
