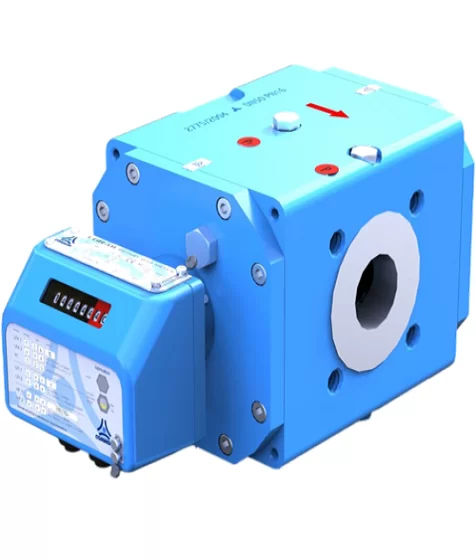

Product view
Rotarymeters
Wide turndown and high accuracy in a body far smaller than the flow suggests.
Two precisely machined impellers displace a fixed volume per revolution, giving the MT-R excellent accuracy right down to very low flow. Turndown up to 1:250 makes it the natural choice for industrial sites where demand collapses overnight and peaks during production — exactly the profile that defeats a turbine meter.
Features
- •Turndown to 1:250
- •High accuracy sustained at low flow
- •Compact relative to equivalent-capacity turbine meters
- •Low-frequency and high-frequency pulse outputs
- •Integral or remote volume correction
Key features
- Turndown to 1:250
- High accuracy sustained at low flow
- Compact relative to equivalent-capacity turbine meters
- Low-frequency and high-frequency pulse outputs
- Integral or remote volume correction
Applications
- Industrial sub-metering with variable demand
- Commercial custody transfer
- District station measurement
Technical specifications
Confirmed against your duty at order stage — send us the operating conditions and we will verify the selection.
| Parameter | Value |
|---|---|
| Flow range | 0.5 – 1,600 m³/h |
| Accuracy | ±1 % (±0.5 % over upper range) |
| Turndown | Up to 1:250 |
| Design pressure | Up to 20 bar |
| Sizes | G16 – G1000 / DN 40 – DN 150 |
| Connections | PN16 flanged, ANSI 150 |
Technical documents
Datasheets, installation manuals, drawings and conformity declarations.
- MT-R Rotarymeter — Technical DatasheetDatasheet · PDF · on request
- MT-R Rotarymeter — Installation & Maintenance ManualManual · PDF · on request
- MT-R Rotarymeter — Dimensional DrawingDrawing · DWG / PDF · on request
- MT-R Rotarymeter — Declaration of ConformityCertificate · PDF · on request
Documentation for Rotarymeters is issued on request against the confirmed specification. Request the document pack.
Related products
Gas Meters
Volume Correctors
Converts line-condition volume into the standard-condition figure you invoice on.
Enquire about this product
The more detail you give on the duty, the more precise the proposal comes back.
Frequently asked questions
What engineers most often ask when specifying this equipment.
It follows the flow profile. Wide turndown with low minimum flow favours rotary; high, steady flow favours turbine on cost; internal consumption monitoring that needs no fiscal approval is best served by a quantometer. Send us a load profile and we will size against it.
