Quantometers

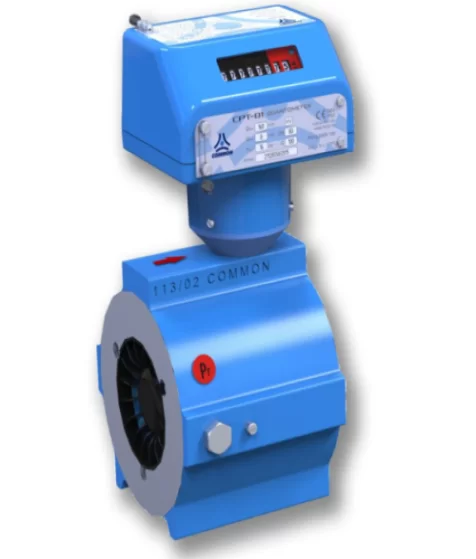

Product view
Quantometers
Turbine-derived consumption monitoring where fiscal approval is not required.
The MT-Q applies turbine measurement to internal consumption monitoring and energy management, where knowing usage to within a couple of percent is enough and pattern approval is unnecessary. Dropping the fiscal certification makes it substantially cheaper to deploy across many departmental sub-meters.
Features
- •Turbine sensing without fiscal approval overhead
- •Compact, low-cost body for wide deployment
- •Pulse output for energy-management systems
- •Low pressure loss
- •Straightforward in-line installation
Key features
- Turbine sensing without fiscal approval overhead
- Compact, low-cost body for wide deployment
- Pulse output for energy-management systems
- Low pressure loss
- Straightforward in-line installation
Applications
- Departmental energy monitoring
- Boiler-house consumption tracking
- Internal cost allocation
Technical specifications
Confirmed against your duty at order stage — send us the operating conditions and we will verify the selection.
| Parameter | Value |
|---|---|
| Flow range | 6 – 2,500 m³/h |
| Accuracy | ±2 % |
| Design pressure | Up to 16 bar |
| Sizes | DN 50 – DN 200 |
| Output | Low-frequency pulse |
| Connections | PN16 flanged |
Technical documents
Datasheets, installation manuals, drawings and conformity declarations.
- MT-Q Quantometer — Technical DatasheetDatasheet · PDF · on request
- MT-Q Quantometer — Installation & Maintenance ManualManual · PDF · on request
- MT-Q Quantometer — Dimensional DrawingDrawing · DWG / PDF · on request
- MT-Q Quantometer — Declaration of ConformityCertificate · PDF · on request
Documentation for Quantometers is issued on request against the confirmed specification. Request the document pack.
Related products
Gas Meters
Volume Correctors
Converts line-condition volume into the standard-condition figure you invoice on.
Enquire about this product
The more detail you give on the duty, the more precise the proposal comes back.
Frequently asked questions
What engineers most often ask when specifying this equipment.
It follows the flow profile. Wide turndown with low minimum flow favours rotary; high, steady flow favours turbine on cost; internal consumption monitoring that needs no fiscal approval is best served by a quantometer. Send us a load profile and we will size against it.
